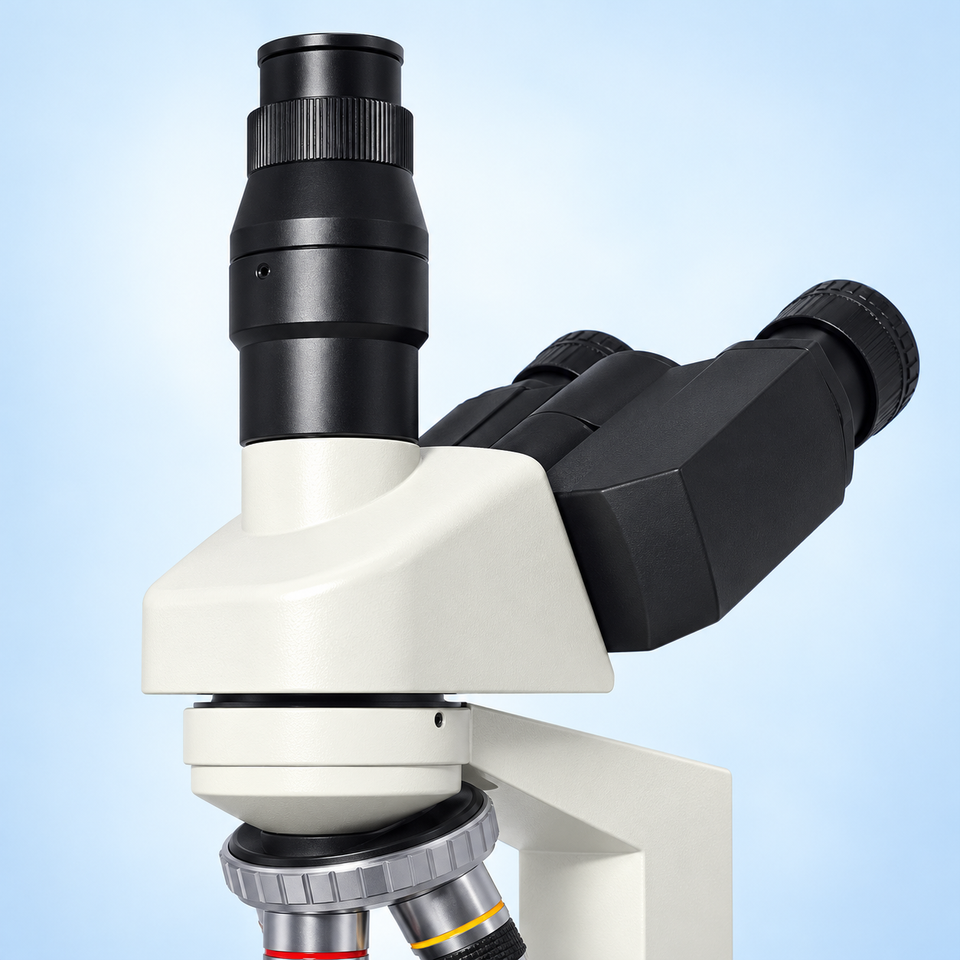

30° Inclined Trinocular Head
Adjust the eyepiece spacing from 48 to 76 mm and set the diopter for comfortable viewing. The separate vertical port accepts a compatible microscope camera.
Optenra PW80 Trinocular Compound Microscope
$369.00 USD
Skip to product information

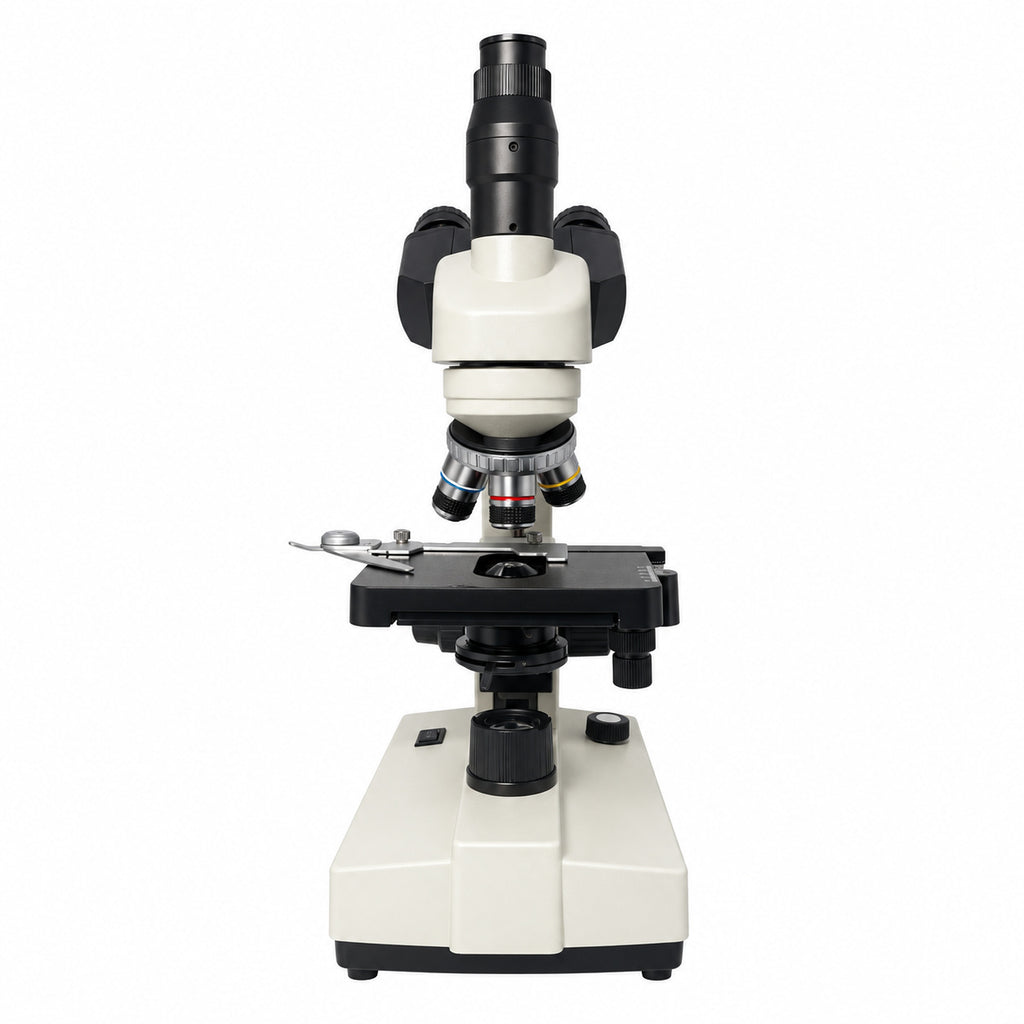

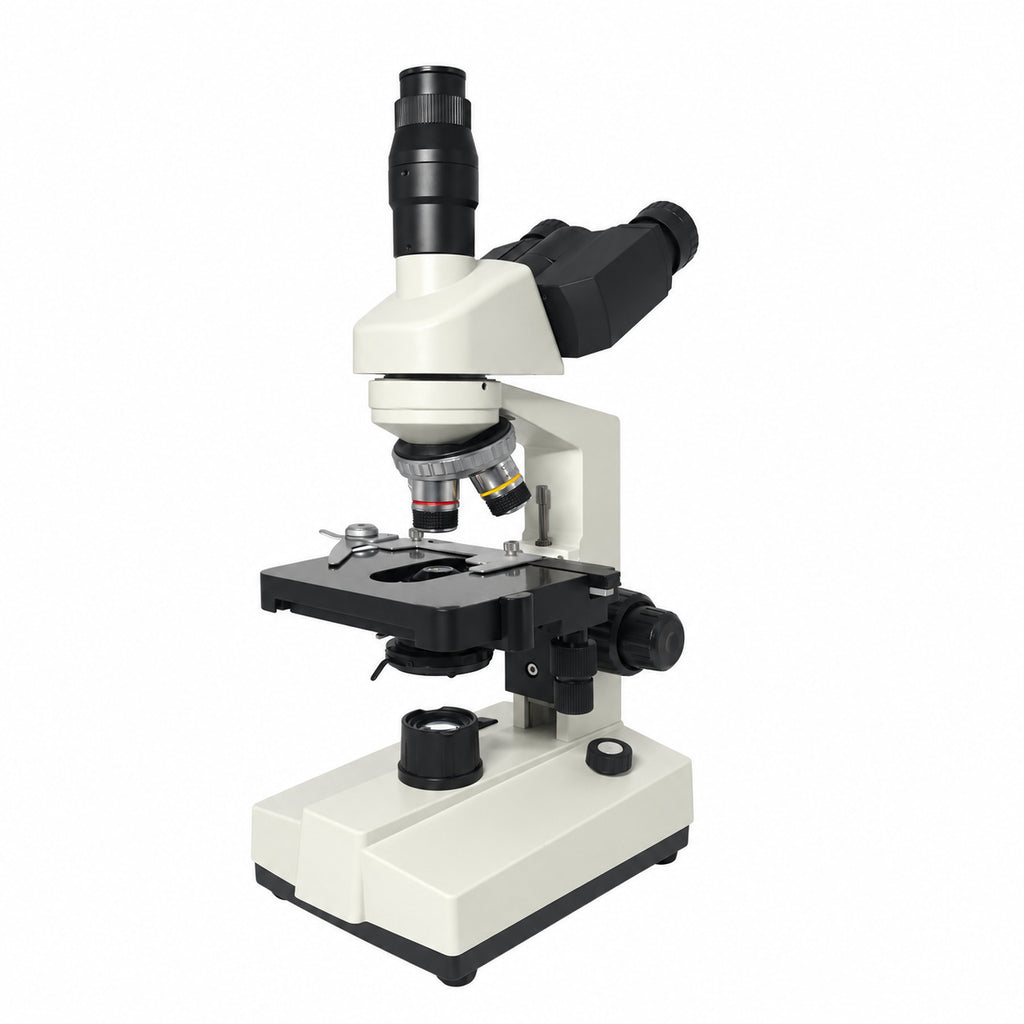

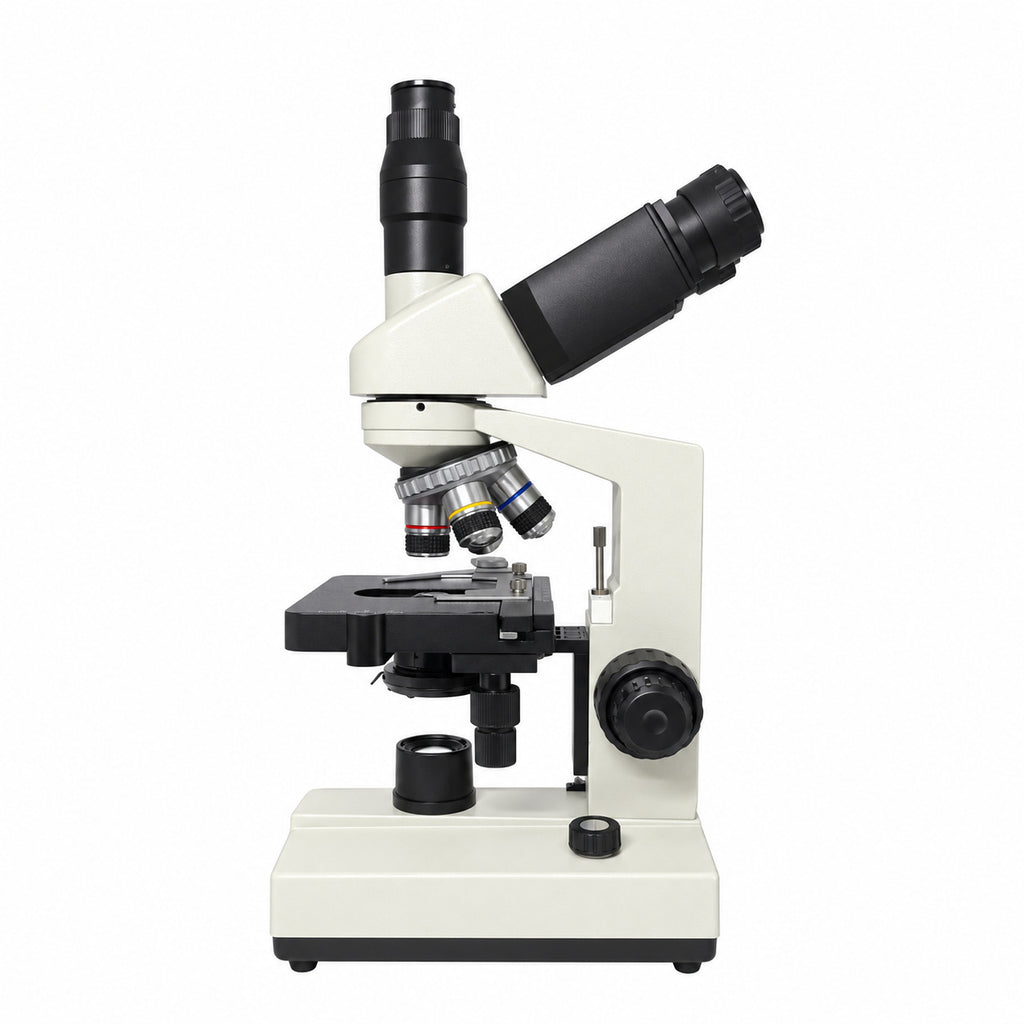

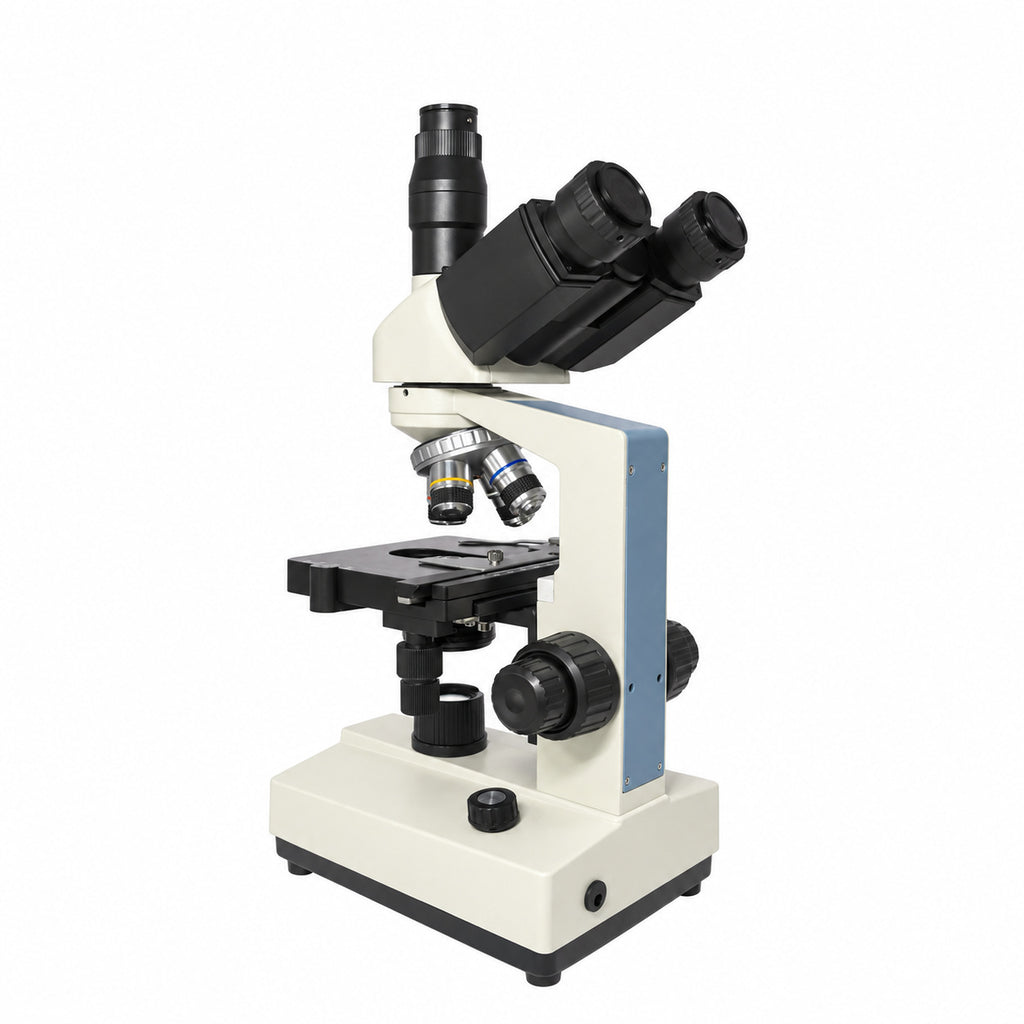

Optenra PW80 Trinocular Compound Microscope
$369.00 USD
- 40×–1600× Total Magnification
- Vertical Camera Port Trinocular Viewing
- Rechargeable 1W LED Adjustable Illumination
- Double-Layer Mechanical Stage Precise X/Y Control
Overview
The PW80 Trinocular Compound Microscope combines coated widefield optics, adjustable viewing controls, and a mechanical stage for microscopic examination of prepared samples across laboratory, research, and industry applications.
Read full overview
- Achromatic Optics & Coated Widefield Eyepieces — Coated optical-glass widefield eyepieces pair with metal-bodied achromatic objectives for clear specimen viewing. The widefield design offers a broad viewing area, while achromatic optics help reduce color fringing around specimen details.
- Adjustable Viewing for a Comfortable Fit — The 30° inclined viewing head, 48–76 mm interpupillary adjustment, and diopter adjustment let you tailor the viewing setup to your eyes. These adjustments help you find a comfortable position for routine observation sessions.
- Mechanical Stage with Coarse & Fine Focusing — A double-layer mechanical stage lets you move slides along the X and Y axes using dedicated control knobs. Coarse and fine focus adjustments help you locate specimens and bring small details into focus without repositioning the slide by hand.
- Rechargeable 1W LED Illumination — The 1W transmitted LED light illuminates specimens from below, with adjustable brightness to suit different slides. An Abbe condenser helps direct light onto the specimen, and rechargeable power adds flexibility for use in different workspaces.
- Versatile Laboratory & Industry Applications — Supports microscopic observation of appropriately prepared samples in aquaculture, industrial raw-material inspection, veterinary sample examination, food sample examination, cosmetics and skincare research, and university laboratories. Observe algae, fine particles, and specimen structures using suitable slide preparation and magnification. Its sturdy metal body provides a stable platform for routine work.

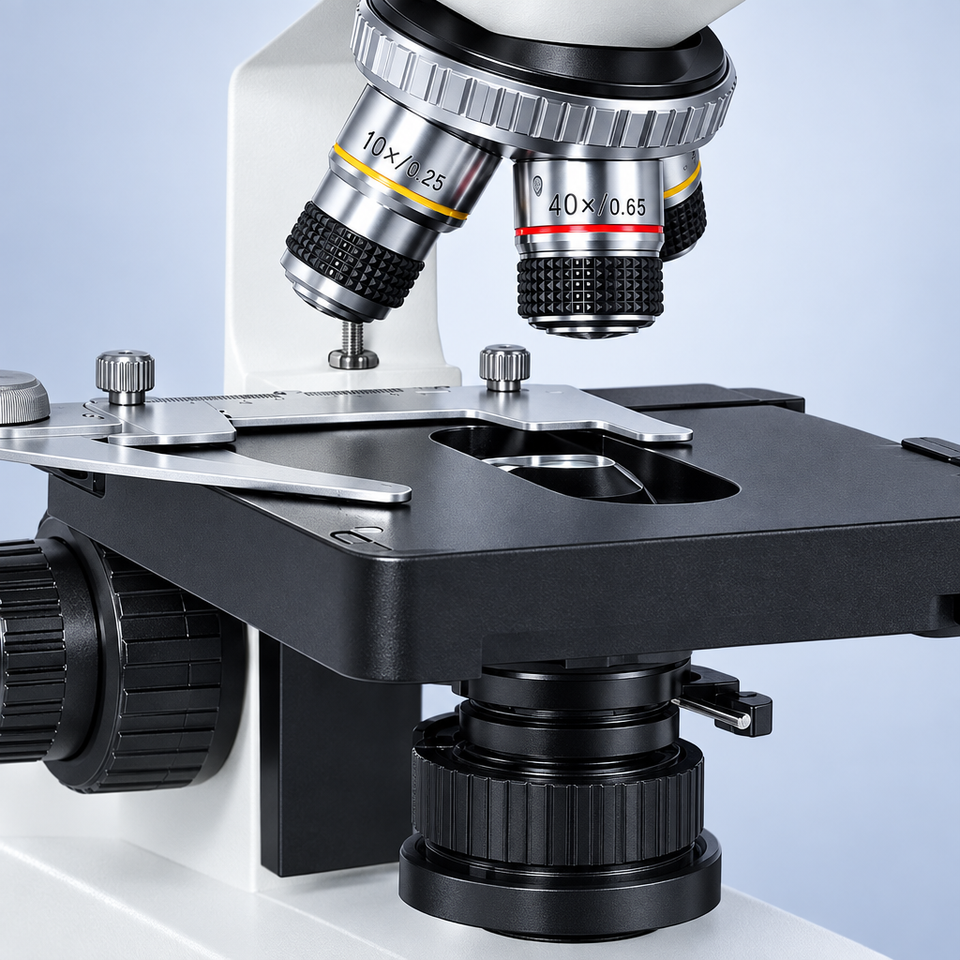

Objectives & Stage
Features four achromatic objectives and a double-layer mechanical stage with smooth X-Y controls for precise slide positioning.

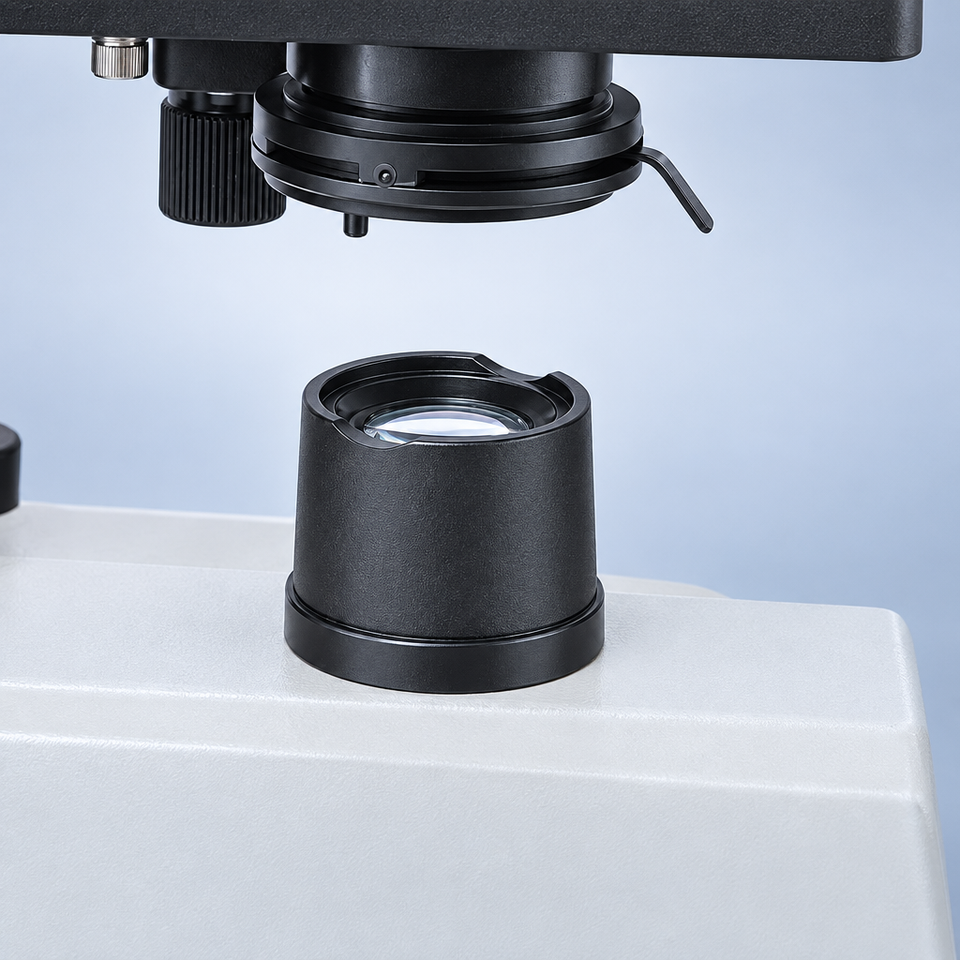

Rechargeable 1W LED
A rechargeable 1W LED with adjustable brightness provides bright, even illumination for laboratory, research, or on-site use.

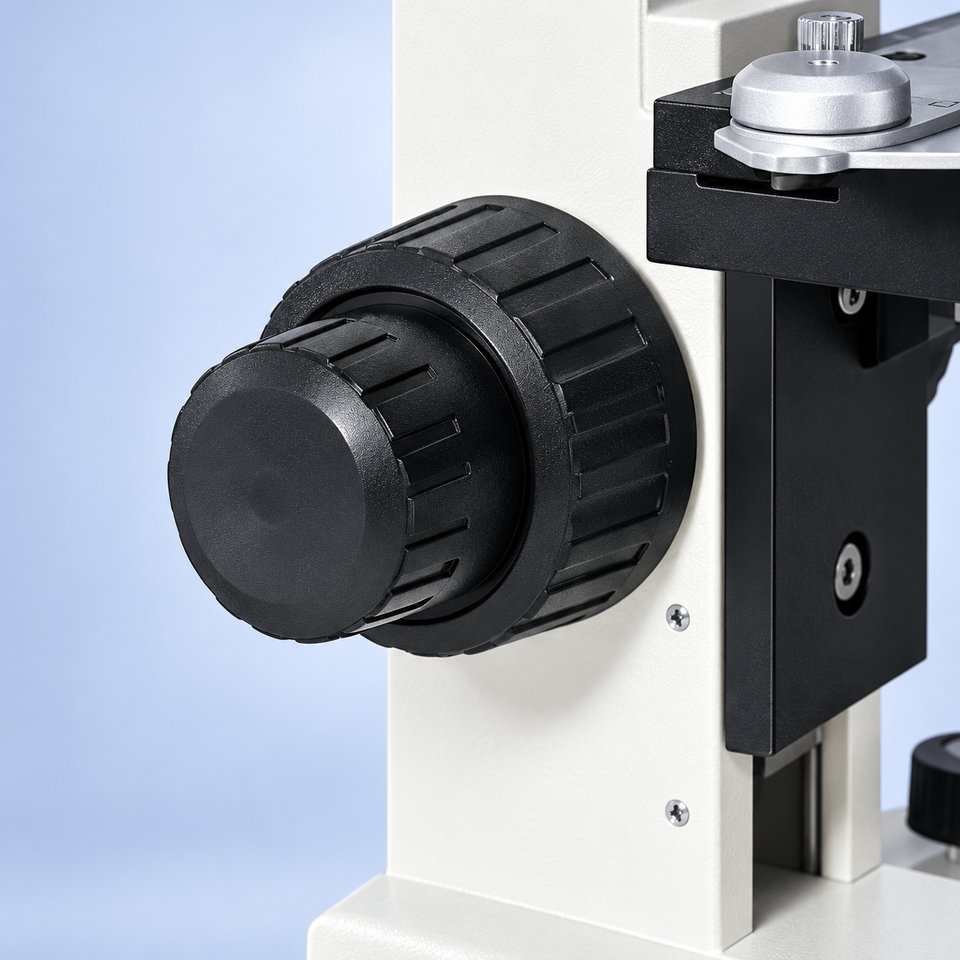

Coaxial Coarse & Fine Focus
Use the coaxial coarse and fine knobs to bring a specimen into view, then fine-tune the focus for a sharp image.
What's in the box
- 1 × PW80 Trinocular Compound Microscope
- 1 pair of WF10× eyepieces
- 1 pair of WF16× eyepieces
- 5 prepared slides
- 1 power adapter
- 1 dust cover
- 1 user manual
Functional specifications
- Magnification
- 40×–1600× (with included WF10× & WF16× eyepieces)
- Viewing Head
- Trinocular, 30° inclined, diopter adjustable; vertical camera port
- Eyepieces
- WF10× and WF16× widefield eyepieces
- Objectives
- 185 Achromatic objectives: 4×, 10×, 40× (spring-loaded), and 100× (spring-loaded, oil immersion)
- Mechanical Stage
- Double-layer mechanical stage, 115 × 125 mm
- Focusing System
- Coaxial coarse and fine focus (coarse travel: 20 mm, fine travel: 1.3 mm)
- Condenser
- Abbe condenser, NA 1.25, with adjustable iris diaphragm and lever
- Illumination
- 1W LED cold illumination, adjustable brightness
