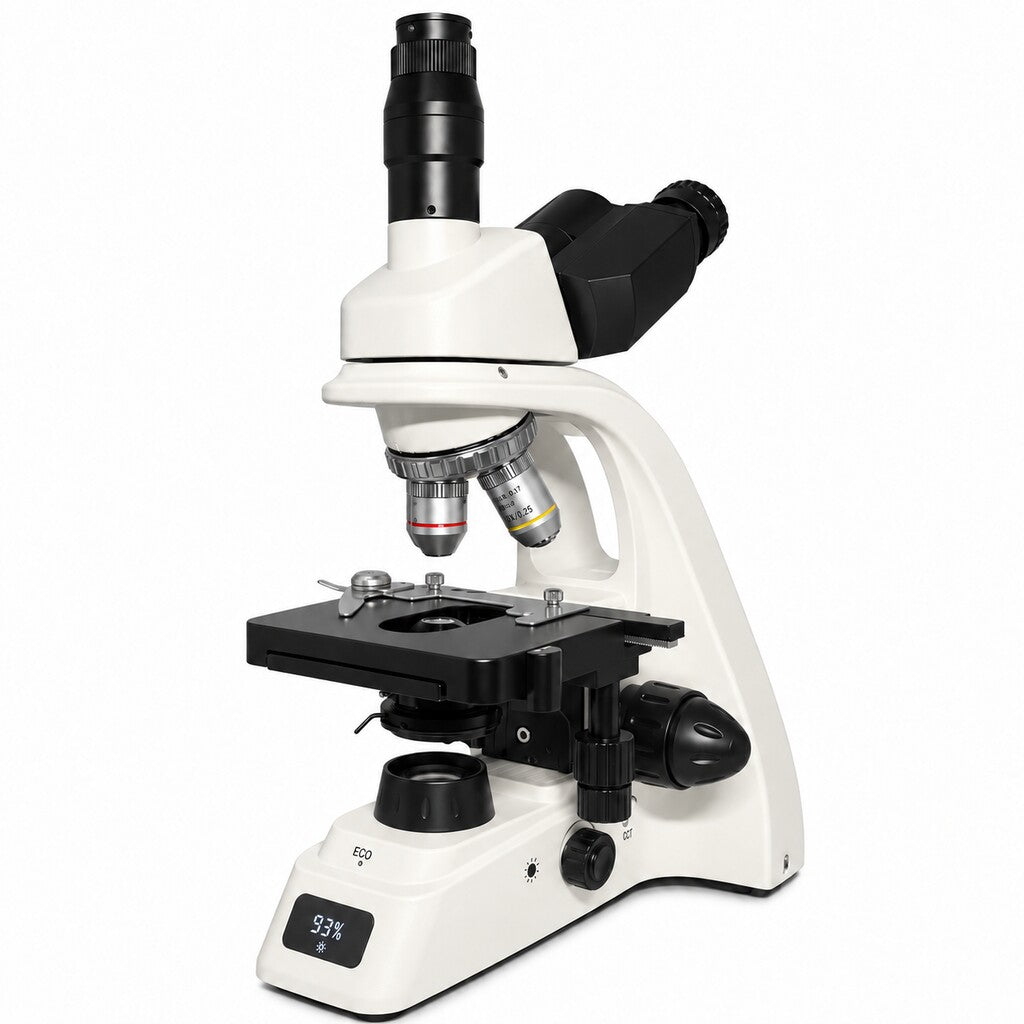

PL200 trinocular compound microscope, alternate three-quarter view on white background

Optenra PL200 Trinocular Compound Microscope

Name: Optenra PL200 Trinocular Compound Microscope
Brand: Optenra
Price: 469.00 USD
Availability: InStock

$469.00 USD

40×–1600× Total Magnification
Vertical Camera Port Trinocular Viewing
Rechargeable 3W LED Adjustable 3000–6500 K
Double-Layer Mechanical Stage 72 × 32 mm X/Y Travel

30-Day Returns 1-Year Warranty Product Support

Overview

The PL200 is suitable for laboratory research, biology education, and microscopic observation of samples from pets, livestock, and aquaculture.

Read full overview

Simultaneous Camera & Eyepiece Viewing — The PL200 Trinocular features a dedicated camera port with a 1:1 (50:50) beam-split optical system, allowing you to observe through the eyepieces while the camera captures or displays images at the same time. This makes it ideal for documentation, teaching, demonstrations, and laboratory imaging without interrupting direct visual observation.
Rechargeable 3W LED Illumination — Features a 3W rechargeable LED light source with a fly-eye lens illumination system, supporting adjustable color temperature and automatic power-off; this ensures uniform illumination and enhances convenience for laboratory use.
Precision Mechanical Stage — Equipped with a double-layer mechanical stage offering a 72 × 32 mm travel range; allows for precise X-Y movement of specimens, facilitating the positioning and tracking of the area under observation.
195EP Plan Achromatic Objectives — Includes 195EP plan-achromatic objectives (4X, 10X, 40X, and 100X Oil). The 40X and 100X objectives feature a spring-loaded mechanism to minimize the risk of accidental collision between the objective and the slide during high-magnification observation.
40X–1600X Magnification & Ergonomic Viewing — Offers an optical magnification range of 40X–1600X, paired with WF10X/18mm and WF16X eyepieces; the Siedentopf-style binocular head features a 30° inclination and 360° rotation, making it ideal for prolonged observation and shared use.

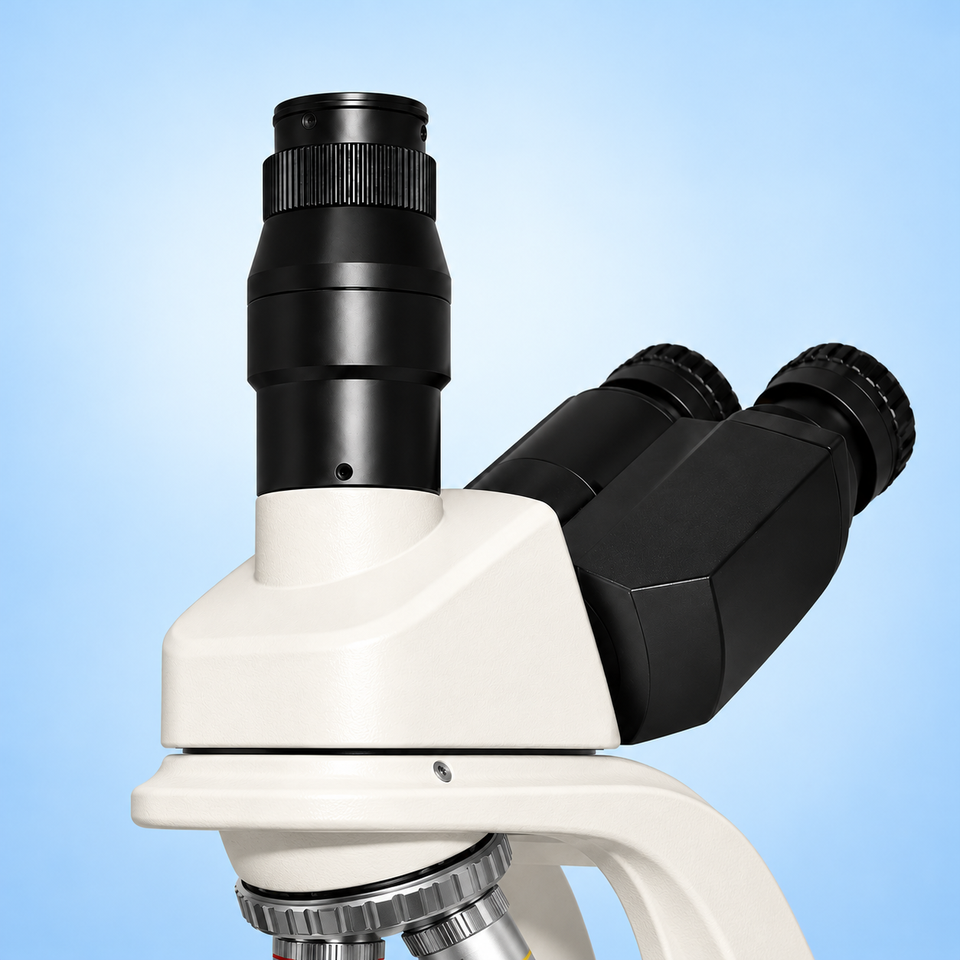

PL200 trinocular viewing head with original shallow support shelf and curved microscope arm

360° Rotatable Trinocular Head

The 30° inclined head rotates 360° for comfortable viewing; a separate vertical port accepts a compatible microscope camera.

PL200 195EP plan achromatic objectives and X-Y mechanical stage

195EP Plan Achromats & X-Y Stage

195EP plan achromatic objectives reveal fine detail, while the double-layer mechanical stage moves slides precisely along the X and Y axes.

PL200 adjustable LED illumination housing

Adjustable 3W LED Illumination

Adjust the rechargeable 3W LED's color temperature from 3000 K to 6500 K and set the brightness to suit different specimens.

PL200 X-Y stage, coaxial focus and light brightness controls

Controls at Your Fingertips

The left stacked knobs move the stage along the X and Y axes; the right coaxial wheel adjusts coarse and fine focus; the lower knob sets LED brightness.

What's in the box

1 × PL200 Trinocular Compound Microscope
1 pair of WF10× eyepieces
1 pair of WF16× eyepieces
5 prepared slides
1 power adapter
1 dust cover
1 user manual

Functional specifications

Magnification: 40×–1600× (with included WF16× eyepieces)
Viewing Head: Trinocular, 30° inclined, 360° rotatable; independent vertical camera port
Eyepieces: WF10× and WF16× widefield eyepiece pairs
Objectives: 195EP Plan Achromatic Objectives: 4×, 10×, 40× (spring-loaded), 100× (spring-loaded; oil immersion)
Mechanical Stage: Double-layer stage; X/Y travel 72 × 32 mm
Focusing: Coaxial coarse and fine focus; coarse travel 22 mm; fine adjustment 0.002 mm
Condenser: Abbe condenser, NA 1.25, with adjustable iris diaphragm
Illumination: Rechargeable 3W LED; adjustable brightness and 3000–6500 K color temperature
